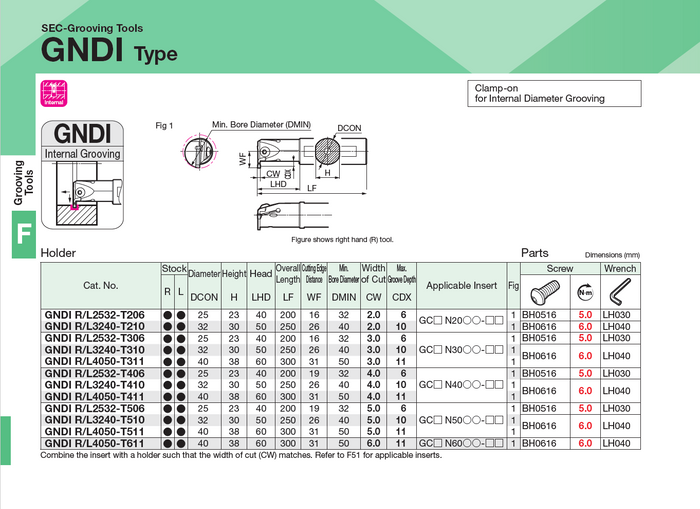

GNDI - Minimum Bore > 32mm
GNDIR/L Series - For Internal Grooving, Traverse Cutting & Profiling

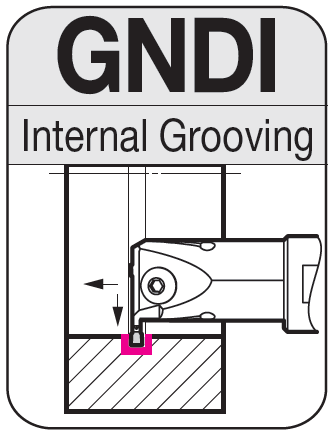

GNDI is suitable for workpieces with a minimum bore size of no less than 32mm
Sumitomo GND Internal Toolholder
* Wide Range
Capable of handling various types of machining processes including grooving, traverse machining, copying, facing and boring.
* Stable Tool Life
A variety of chipbreakers improve the chip control in various applications.
* Reduced chattering and high efficiency machining
To mono-block, die steel bodies reduce vibration by approximately 30% as compared to conventional products.
* Precision edge width of polishless inserts
Sumitomo's high precision sintering technology allows a tolerance of +/-0.03mm in grooving width for 1.25 ~ 6.0mm edge widths
GNDIR - Right Hand Version
GNDIL - Left Hand Version
Click Here for Sumitomo GND Series Video
