Quick-Grip Accu-Length Collet Chucks

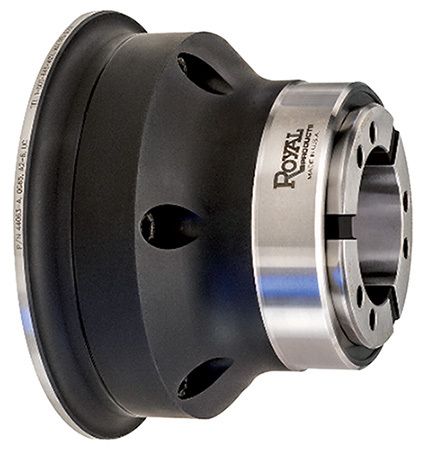

ROYAL PRODUCTS - Quick-Grip Accu-Length CNC Collet Chucks

Ideal for Main and Sub Spindles on CNC Lathes

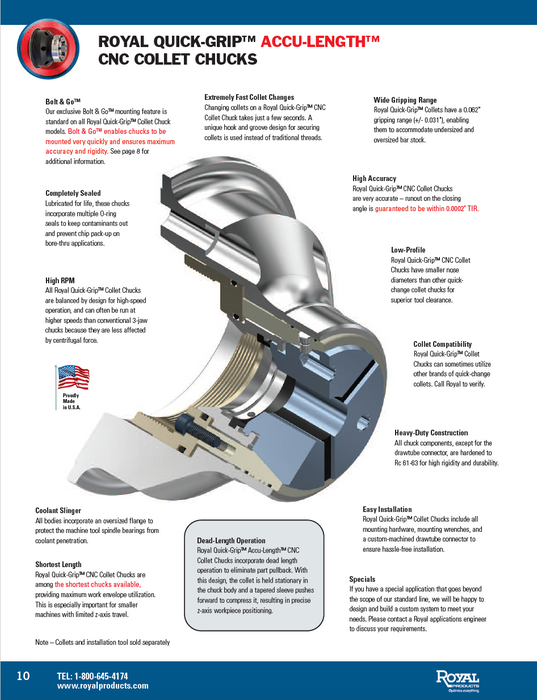

Accu-Length CNC Collet Chucks incorporate dead length operation to eliminate part pullback. With this design, the collet is held stationary in the chuck body and a tapered sleeve pushes forward to compress it, resulting in precise Z axis positioning.

* Royal Quick-Grip CNC Collet Chucks set a new standard in workholding by offering ten second collet changes.
* These chucks utilize unique collets that feature an industry-best gripping range, enabling them to accomodate large variations in workpiece diameter
* Royal Quick-Grip collets incorporate parellel grip functionality, ensuring that the full length of each collet segment always remains in contact with the workpiece, producing maximum holding force.

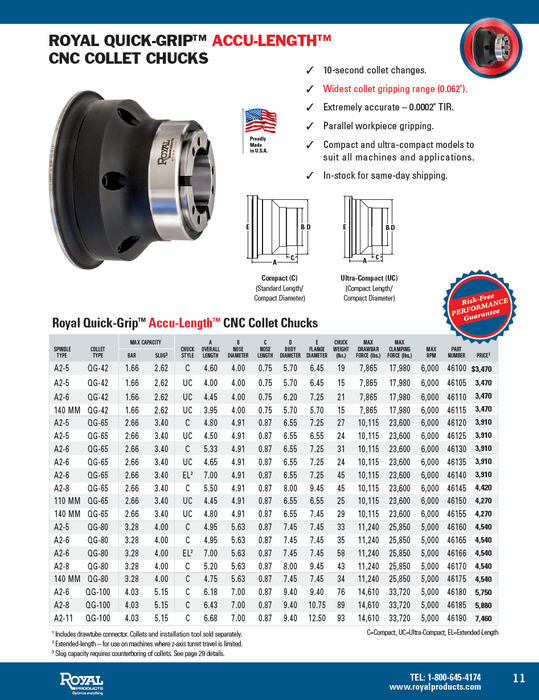

* Ultra precision accuracy - all Royal Quick-Grip CNC Collet Chucks are guaranteed to 0.0002" TIR
* With their extremely short lengths, Royal Quick-Grip CNC Collet Chucks maximise a lathes Z Axis capacity
* Royal CNC Collet Chucks are easy to install and incorporate a unique Bolt & Go advantage.

We have solutions for all CNC makes and models - call us today for a solution.

Note: As these chucks are specific to the lathe used upon, these are available on indent basis from Royal Products USA - Delivery time is generally 1 ~ 2 weeks from receipt of order placement.

Click Here for Royal Products Quick-Grip CNC Collet Chuck Video
